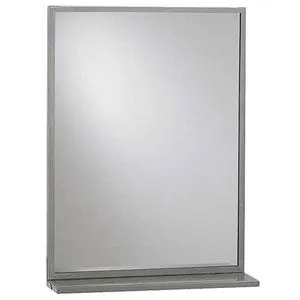

Name: Stainless Steel Angle Frame Mirror with Shelf 0605 - Commercial Bathroom Mirror
SKU: 492187

All Mirrors are subject to additional shipping charges. This is a quote by quote basis.

PRODUCT OVERVIEW

STAINLESS STEEL ANGLE FRAME MIRROR WITH SHELF includes shelf of 18 gauge stainless steel with satin finish and all edges returned and hemmed for maximum rigidity and safety. Shelf is welded to face frame and is 5" (127 mm) wide.

All Mirrors are subject to additional shipping charges. This is a quote by quote basis.

COMPONENTS AND MATERIALS

Frame: 18-8, type 304, 20 gauge (.036" <.91mm> thick) stainless steel. Roll-formed one piece construction. Exposed surfaces have a No 4 satin finish. Edges and corners are burr free.

Shelf: 18-8, type 304, 18 gauge (.048 in. <1.2mm> thick) stainless steel. Unitized all welded construction. Exposed surfaces have satin finish. Edges and corners are burr free.

Glass: Standard glazing is No 1 quality, 1/4" (6.4mm) thick plate/float, silver coated and hermetically sealed with a uniform copper plating, and warranted against silver spoilage for 15 years. Mirrors meet Federal Spec DD-M-411C, ASTM C- 1503, and ASTM C-1036-91.

Filler: Expanded polyethylene microcell foam sheet material, abrasion resistant and shock absorbing, water resistant, 1/8 inch (3.2mm) total layer thickness.
Installation Install brackets level and plumb per diagram location using No10 self tapping screws (by others). Hang mirror on brackets and tighten locking screws provided at top & bottom. For ADA compliance, bottom edge of reflecting surface should be no higher than 40"(1016mm) above finished floor.

SPECIFICATIONS

Inter-Lok Stainless Steel Framed Mirror with Shelf shall fabricated of alloy 18-8 stainless steel, type 304, 18 gauge with mitered corners welded and polished. Structural reinforcement gussets shall be of welded construction. Mirror glazing shall be _____ (insert glazing option) and shall be warranted for 15 years against silver spoilage. All edges of mirror shall be protected with friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. An 18 gauge corrosion protected steel “H” bracket shall be supplied. Mirror shall be secured to vertical brackets with corrosion protected allen head locking screws furnished. All exposed surfaces shall be No 4 satin finish.
